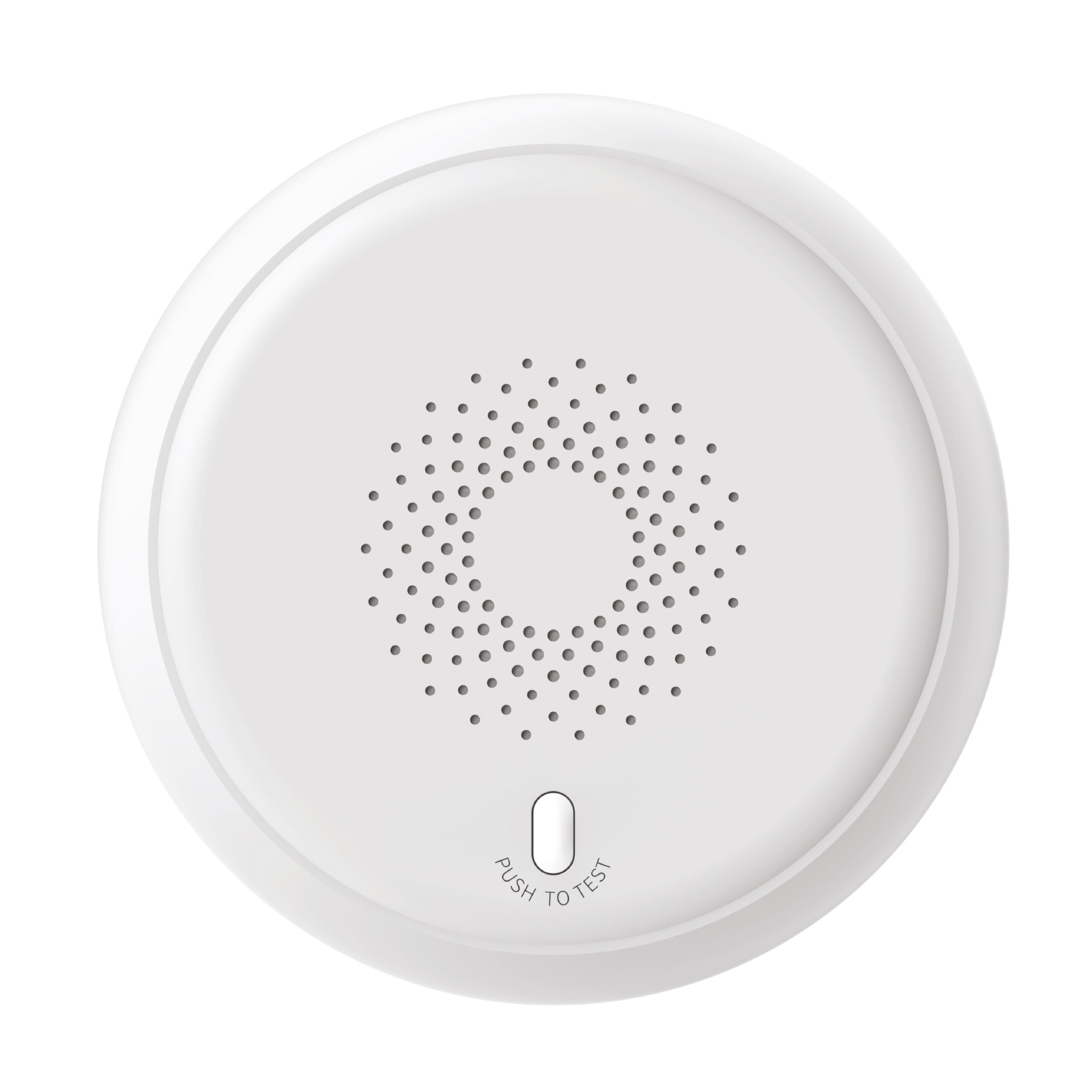

Smoke Sensor

  • Utilizes advanced optical sensing for early smoke detection
  • Provides independent audible alarms and wireless signals to the gateway
  • Stable and sensitive photoelectric sensors for reliable performance
  • High-decibel alarm for effective alerting
  • Certified with CCCF, ROHS, and CE standards
  • Long-lasting battery life of up to 3 years

Description

Category Specification
Model Number TSE-SD-2504

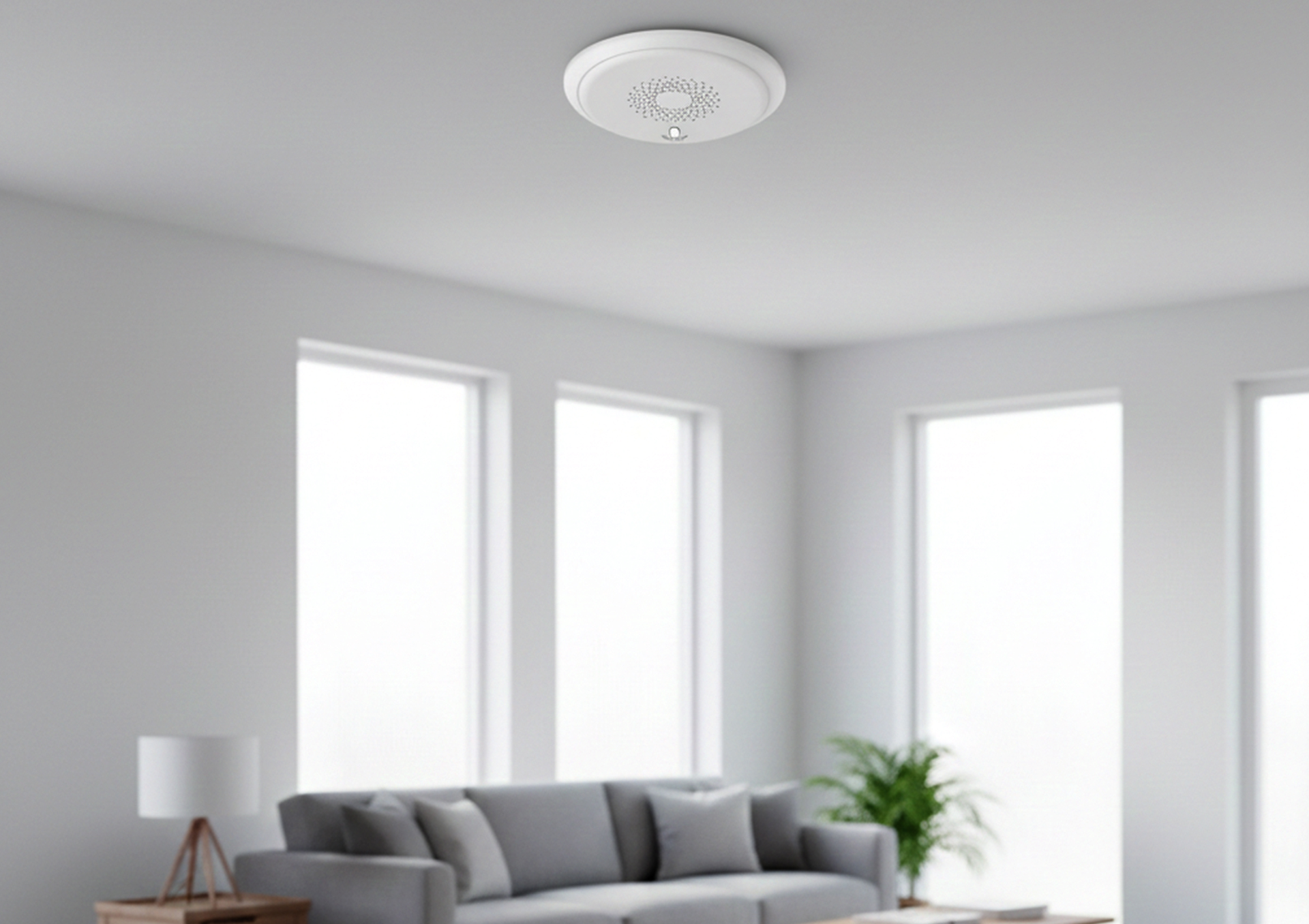

Installation Ceiling / Top Mount
Working Voltage CR123A, 3 V
Alarm Sound Pressure 85 dB (at 3 m)
Battery Life 3 Years
Standby Current < 15 µA
Alarm Current < 40 mA
Alarm Sensitivity 0.08–0.12 dB/m (Unadjustable)
Color Ivory
Casing ABS
Dimensions 90 × 37.5 mm
Radio Protocol ZigBee 3.0
Signal Range (Open Field) 50 m
